Lubricus lubrication system can supply up to 16 lubricating points – either autonomously in battery mode or via an external power supply.

Lubricus lubrication system is an extremely compact lubrication unit for oils and greases up to NLGI class 2. The lubrication system works either autonomously with a battery back (3.6V) or using an external voltage supply (24VDC). Dependent on the version, the Lubricus has up to four outlets and
is thus optimally suited for uses with multiple lubricating points.

Lubricus is suitable for the simple and reliable supply of lubrication to bearings, linear guides, chains and open tooth systems, for which special lubricating pinions and lubricating gearwheels are available.

Due to the compact dimensions, Lubricus is optimally suited for upgrades or retrofitting.

Lubricus controller is used for external monitoring of Lubricus, to which up to four Lubricus lubrication systems (4 outlets each = 16) can be connected. A connection to the PLC is possible using the Lubricus Controller. The connected Lubricus lubricating devices can be individually controlled and monitored using the controller. The dialogue takes place via a simple to operate LCD display.

  • Transport of oil and grease up to NLGI-class 2
  • Connection to machinery control possible
  • Delivery pressure up to 70 bar (1015 psi)
  • Fault/empty reporting
  • Operating temperature range -20°C to +70°C
  • Can be used outside
  • Temperature-independent feed rate
  • Visual inspection possible at any time
  • Simple operation
  • No bleeding of the grease in the bellows
  • PLC connect

Related products

  • MULTI-OUTLET RADIAL PUMP

    MULTI-OUTLET RADIAL PUMP

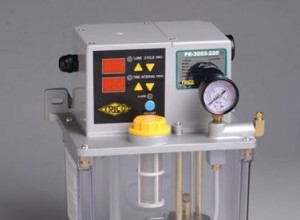

  • PE-30 & PE-32
